Twill Weave Wire Mesh

Short Description:

The twilled weave pattern produces a small, uniform mesh size, making it suitable for applications that require high filtration or separation.
Compared to other types of wire mesh, twill weave wire mesh is often more cost-effective due to its efficient production process.
Twill weave wire mesh is suitable for a wide range of applications, including filtration, screening, straining, and decoration.

Send email to us

Product Detail

Product Tags

Introduction

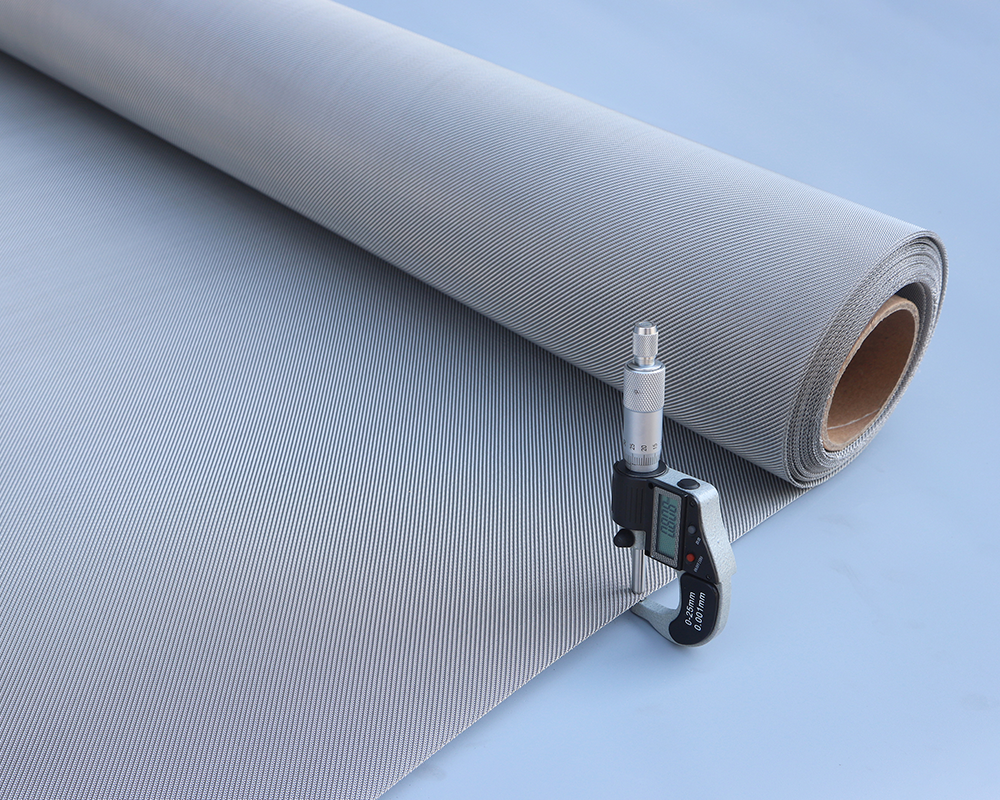

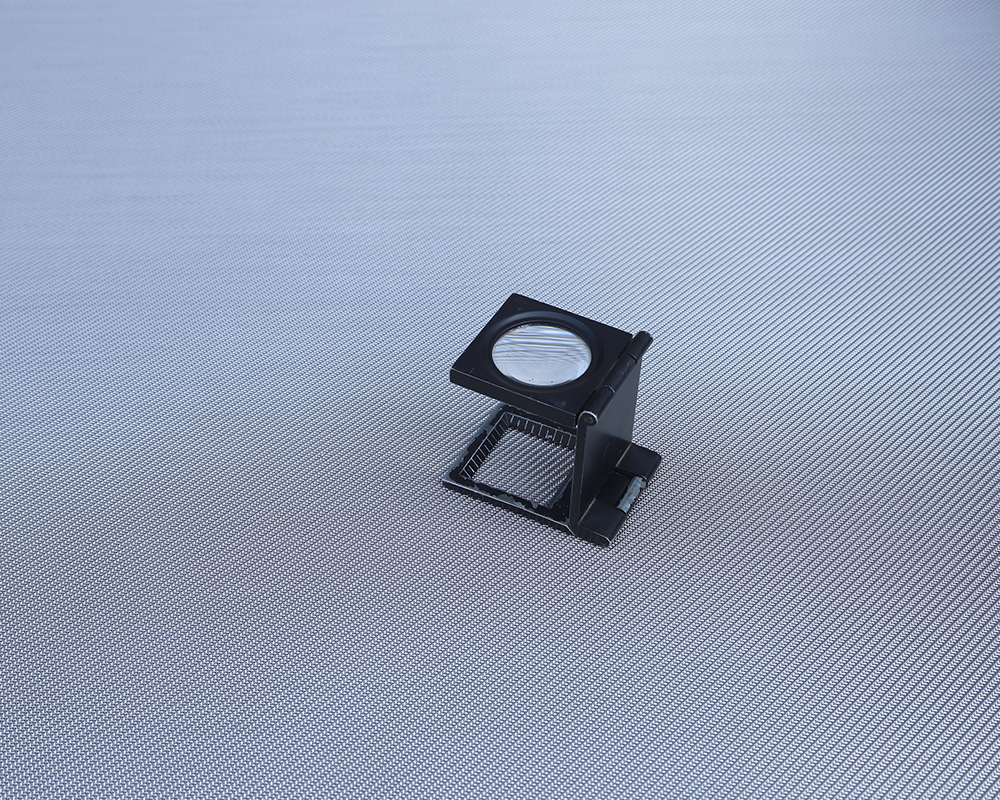

Twill weave wire mesh is produced by passing each weft wire alternately over and under two warp wires. The pattern is staggered on successive warp wires, giving the appearance of parallel diagonal lines.

This weave allows the use of proportionately heavier wires in a particular mesh count (number of openings per lineal inch) than is possible in plain weave.

This cloth has a wide application capable of supporting greater loads and finer filtration.

Display

Plain Weave Wire Mesh

Twill Weave Wire Mesh

Five-Heddle Weave Mesh

Dutch Plain Weave Wire Mesh

Dutch Twill Weave Wire Mesh

Reverse Dutch Wire Mesh

Specification

Common Specification
Wire diameter: 0.025mm to 2.0mm
Mesh: 10 to 400 mesh

Width: 0.5m ---- 6m
Length: 10m to 100m

Mesh Count per Inch	Wire Diameter mm	Aperture Size mm	Open Area	Weight for Stainless Steel (kg/sq m)
230	0.036	0.074	45%	0.15
250	0.04	0.062	37%	0.2
270	0.04	0.054	33%	0.21
270	0.036	0.058	38%	0.17
300*	0.04	0.045	28%	0.24
300*	0.036	0.055	42%	0.13
325*	0.036	0.042	29%	0.21
325	0.028	0.05	41%	0.13
350*	0.03	0.043	34%	0.16
400*	0.03	0.034	27%	0.18
500*	0.025	0.026	26%	0.16

Characteristic

Precise structure, uniform mesh, good filtration accuracy, wear resistance, high temperature resistance, strong acid resistance, corrosion resistance

Application

Twill weave wire mesh is a versatile and durable material that can be used for a variety of different applications. Due to its high tensile strength, corrosion resistance, and temperature resistance. It is commonly used in industries of automotive, aerospace, chemical, and food processing etc, for the filtration, Separation, Reinforcement, Protection.
