Stainless Steel Wire Mesh
Introduction

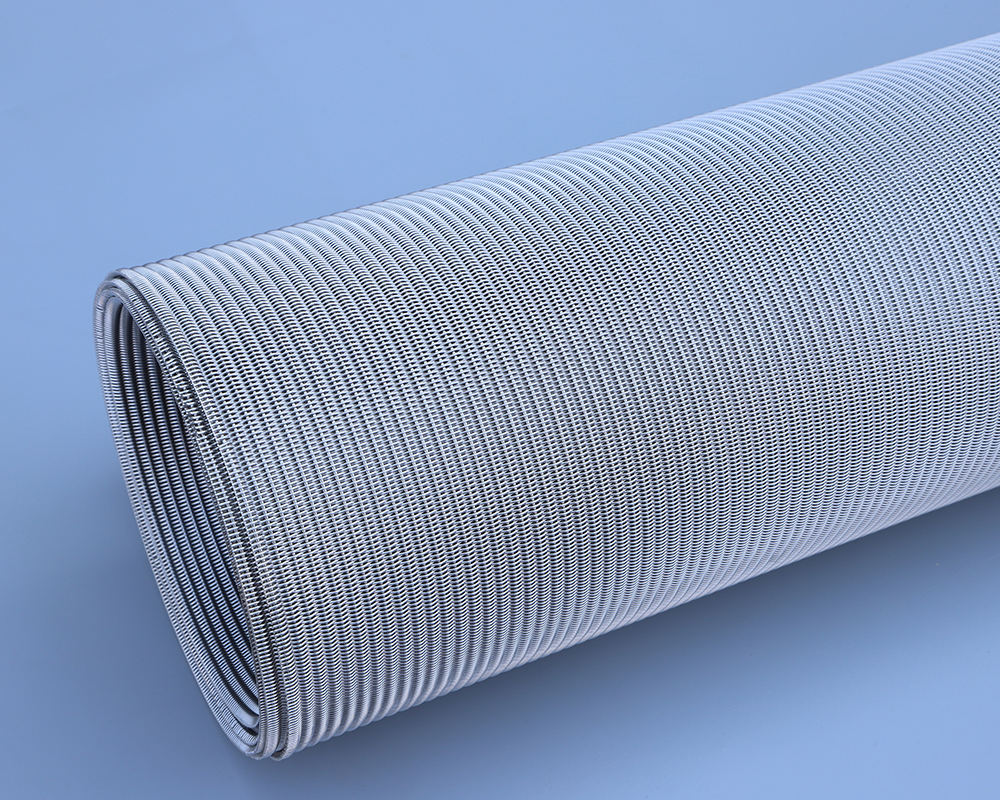

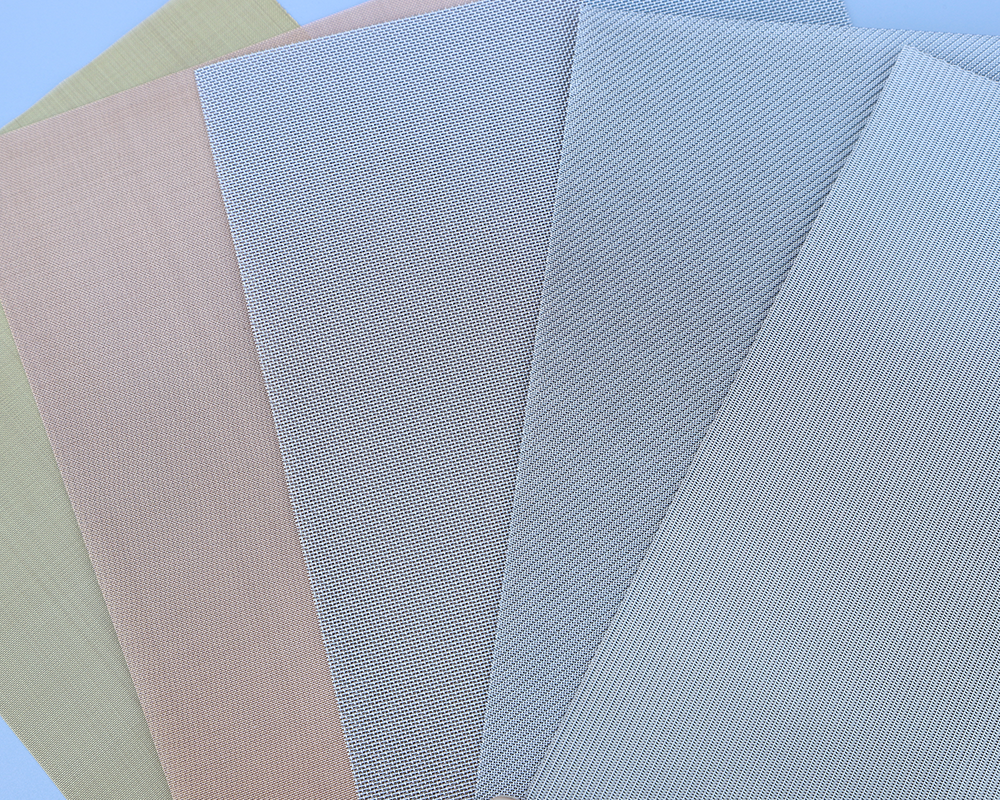

Stainless Steel Wire Mesh is woven using a high quality stainless steel wire.
Stainless steel metal is a versatile material offering corrosion resistance and strength and is available in a wide range of shapes. It is resistant to staining and is, overall, a low maintenance mesh. The attractive lustre of stainless steel make it an ideal material for many applications.
The common type of stainless steel is 304, 304L, 316, 316L, 310, 310S, 314, 321 etc.
Weaving type: Plain weave, Twill weave, Dutch Weave, Reverse Weave, Five-heddle weave, crimped weave.
Our stainless steel wire mesh offers extensive choices in shapes, finish and specialty alloys, available in cut-to-size lengths for just the amount you need, making it an economical choice.
Wire Materials: SUS302, 304, 316, 304L, 316L.
Typical Weaving Patterns: Plain weave, twill weave, dutch weave, twilled dutch weave.
|
Materials
|
Material:stainless steel ss430
|
|
Wire
|
0.038-2.03mm
|
|
Mesh
|
1-300 mesh
|
|
Weave Style
|
Plain weave Twill weave Dutch weave
|
|
Hole
|
square
|
|
Application
|
1. 430 Stainless Steel Wire Mesh is mainly used in manufacturing parts which are resistant to air,steam,water and oxidizing acid corrosion.
2. 430 stainless steel wire mesh can be used for industrial filtering, food industry filtering, sugar industry filtering etc. |
Weaving Method
Plain Weave Wire Mesh
Twill Weave Wire Mesh
Five-Heddle Weave Mesh
Dutch Plain Weave Wire Mesh
Dutch Twill Weave Wire Mesh
Reverse Dutch Wire Mesh
Specification
|
Mesh/Inch |
Wire Diameter |
Aperture |
Open Area |
Weight(LB) /100 Square Foot |
||
|
Inch |
MM |
Inch |
MM |
|||
|
1x1 |
.080 |
2.03 |
.920 |
23.37 |
84.6 |
41.1 |
|
2X2 |
.063 |
1.60 |
.437 |
11.10 |
76.4 |
51.2 |
|
3X3 |
.054 |
1.37 |
.279 |
7.09 |
70.1 |
56.7 |
|
4X4 |
.063 |
1.60 |
.187 |
4.75 |
56.0 |
104.8 |
|
4X4 |
.047 |
1.19 |
.203 |
5.16 |
65.9 |
57.6 |
|
5X5 |
.041 |
1.04 |
.159 |
4.04 |
63.2 |
54.9 |
|
6X6 |
.035 |
.89 |
.132 |
3.35 |
62.7 |
48.1 |
|
8X8 |
.028 |
.71 |
.097 |
2.46 |
60.2 |
41.1 |
|
10X10 |
.025 |
.64 |
.075 |
1.91 |
56.3 |
41.2 |
|
10X10 |
.020 |
.51 |
.080 |
2.03 |
64.0 |
26.1 |
|
12X12 |
.023 |
.584 |
.060 |
1.52 |
51.8 |
42.2 |
|
12X12 |
.020 |
.508 |
.063 |
1.60 |
57.2 |
31.6 |
|
14X14 |
.023 |
.584 |
.048 |
1.22 |
45.2 |
49.8 |
|
14X14 |
.020 |
.508 |
.051 |
1.30 |
51.0 |
37.2 |
|
16X16 |
.018 |
.457 |
.0445 |
1.13 |
50.7 |
34.5 |
|
18X18 |
.017 |
.432 |
.0386 |
.98 |
48.3 |
34.8 |
|
20X20 |
.020 |
.508 |
.0300 |
.76 |
36.0 |
55.2 |
|
20X20 |
.016 |
.406 |
.0340 |
.86 |
46.2 |
34.4 |
|
24X24 |
.014 |
.356 |
.0277 |
.70 |
44.2 |
31.8 |
|
30X30 |
.013 |
.330 |
.0203 |
.52 |
37.1 |
34.8 |
|
30X30 |
.012 |
.305 |
.0213 |
.54 |
40.8 |
29.4 |
|
30X30 |
.009 |
.229 |
.0243 |
.62 |
53.1 |
16.1 |
|
35X35 |
.011 |
.279 |
.0176 |
.45 |
37.9 |
29.0 |
|
40X40 |
.010 |
.254 |
.0150 |
.38 |
36.0 |
27.6 |
|
50X50 |
.009 |
.229 |
.0110 |
.28 |
30.3 |
28.4 |
|
50X50 |
.008 |
.203 |
.0120 |
.31 |
36.0 |
22.1 |
|
60X60 |
.0075 |
.191 |
.0092 |
.23 |
30.5 |
23.7 |
|
60X60 |
.007 |
.178 |
.0097 |
.25 |
33.9 |
20.4 |
|
70X70 |
.0065 |
.165 |
.0078 |
.20 |
29.8 |
20.8 |
|
80X80 |
.0065 |
.165 |
.0060 |
.15 |
23.0 |
23.2 |
|
80X80 |
.0055 |
.140 |
.0070 |
.18 |
31.4 |
16.9 |
|
90X90 |
.005 |
.127 |
.0061 |
.16 |
30.1 |
15.8 |
|
100X100 |
.0045 |
.114 |
.0055 |
.14 |
30.3 |
14.2 |
|
100X100 |
.004 |
.102 |
.0060 |
.15 |
36.0 |
11.0 |
|
100X100 |
.0035 |
.089 |
.0065 |
.17 |
42.3 |
8.3 |
|
110X110 |
.0040 |
.1016 |
.0051 |
.1295 |
30.7 |
12.4 |
|
120X120 |
.0037 |
.0940 |
.0064 |
.1168 |
30.7 |
11.6 |
|
150X150 |
.0026 |
.0660 |
.0041 |
.1041 |
37.4 |
7.1 |
|
160X160 |
.0025 |
.0635 |
.0038 |
.0965 |
36.4 |
5.94 |
|
180X180 |
.0023 |
.0584 |
.0033 |
.0838 |
34.7 |
6.7 |
|
200X200 |
.0021 |
.0533 |
.0029 |
.0737 |
33.6 |
6.2 |
|
250X250 |
.0016 |
.0406 |
.0024 |
.0610 |
36.0 |
4.4 |
|
270X270 |
.0016 |
.0406 |
.0021 |
.0533 |
32.2 |
4.7 |
|
300X300 |
.0051 |
.0381 |
.0018 |
.0457 |
29.7 |
3.04 |
|
325X325 |
.0014 |
.0356 |
.0017 |
.0432 |
30.0 |
4.40 |
|
400X400 |
.0010 |
.0254 |
.0015 |
.370 |
36.0 |
3.3 |
|
500X500 |
.0010 |
.0254 |
.0010 |
.0254 |
25.0 |
3.8 |
|
635X635 |
.0008 |
.0203 |
.0008 |
.0203 |
25.0 |
2.63 |
Characteristic
Square aperture, less rigid than plain weave, especially suitable for deforming, strong wire cloth due to ratio of wire diameter and aperture, it is mostly used for filtration less than 63 μm .
Application
Stainless steel wire is selected for their wear-resisting, heat-resisting, acid-resisting and corrosion resisting characteristics. Many different grades of stainless are used in wire cloth. T304 is the most common, but other are used in specific applications to take advantage of each grade’s unique properties. The Wire Mesh made of stainless steel is extensively used in mining, chemical industry, food industry and pharmaceutical industry.
