Stainless Steel Pleated Filter
Introduction to products

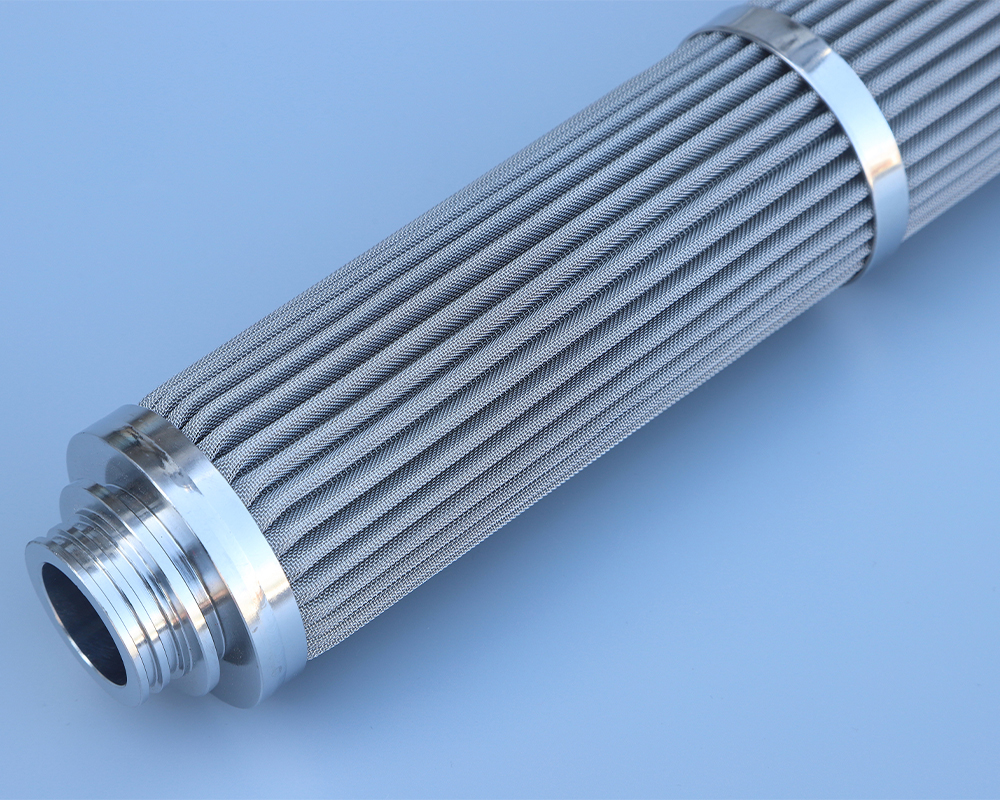

Pleated metal mesh filter is made of fine metal mesh by repeated folding, the use of different diameters of stainless steel woven wire mesh filter element, with good strength, not easy to fall off, easy to clean, large filter area, good permeability and so on.
The pore structure of the pleated design provides a larger filtering surface area, so that particles and impurities are trapped on the surface or inside the pleated sheet when the fluid passes through. This design not only allows the precise filtration of small particles, but also provides the filter with high temperature resistance, corrosion resistance and long-term stable operation.
In order to ensure the shape and structural stability of the filter, the support mesh is usually made of stainless steel or other corrosion-resistant metal materials. At the same time, the addition of two end covers not only helps to connect the filter element, but also strengthens its overall structure to ensure stability, reliability and tightness during use.
Our products are used in a wide range of industrial and commercial applications where efficient and reliable filtration is required.
Advantages and Characteristics
High precision and high particle removal efficiency
The AHT pleated metal filter has a uniform pore distribution in the range of 0.5 to 300 microns, ensuring efficient removal of fine particles and high precision filtration requirements.
high temperature resistance
The corrugated metal structure allows the filter to withstand high temperatures up to 800°C and is particularly suitable for high temperature gas filtration applications.
Stable shape, good impact resistance
Its robust construction guarantees stability and long service life in high-pressure and highly corrosive environments
Excellent mechanical strength
Excellent impact resistance to harsh environments
Good air permeability, consistent filtration efficiency
High porosity and good permeability reduce pressure drop, improve filtration efficiency, and can handle large volumes of impurities, extend replacement cycles, and save overall costs.
Excellent unloading strength
AHT filters maintain strong unloading capacity even in high pressure and corrosive environments, ensuring continuous and reliable filtration performance.
Easily machined into various shapes and welded
Pleated metal materials are easy to process and can be customized to various shapes and connection sizes according to customer requirements, providing highly flexible solutions.

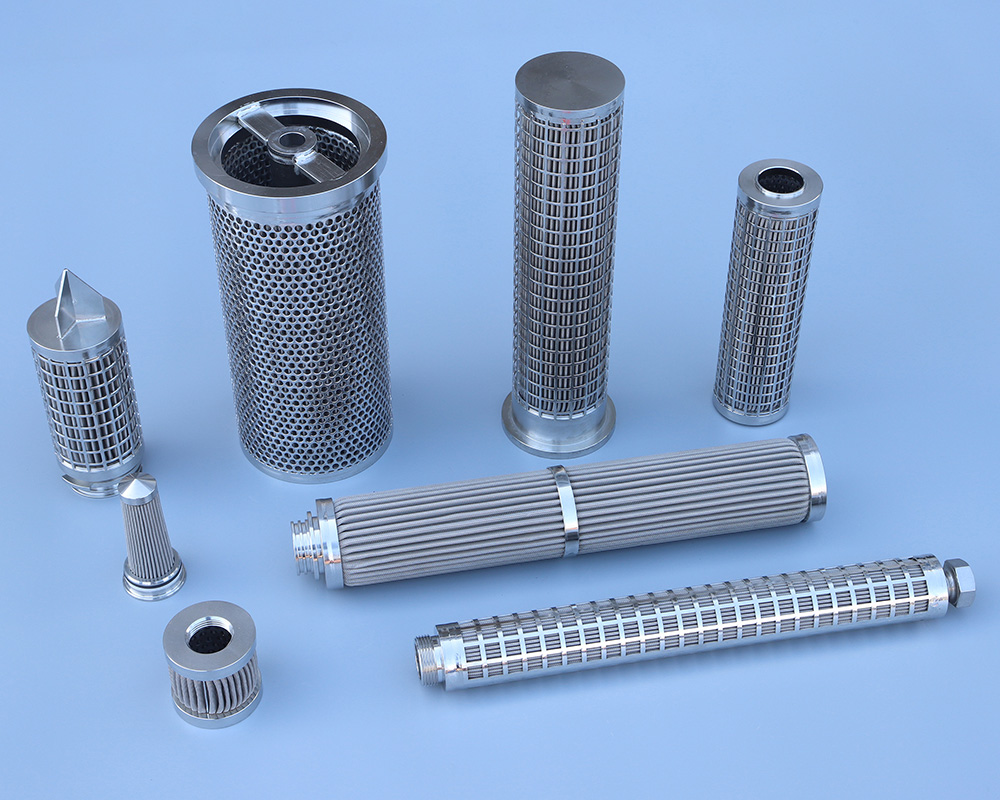

Various materials, shapes and connection sizes can be customized
A wide selection of materials (such as stainless steel, bronze, nickel, etc.) is available, as well as customized services in different shapes and sizes to meet the needs of specific applications.
parameter
Material selection:
Stainless steel (304, 304L, 316, 316L, 904L, etc.) : Strong corrosion resistance, suitable for a variety of chemical environments.
Bronze: Good mechanical properties and electrical conductivity.
Nickel: Has good stability in high temperature environment.
Other alloys: available according to specific requirements, such as titanium alloys.
Structure type:
Single and multilayer: offers different strength and filtration accuracy options.
Woven wire mesh: High flexibility for filters with complex shapes.

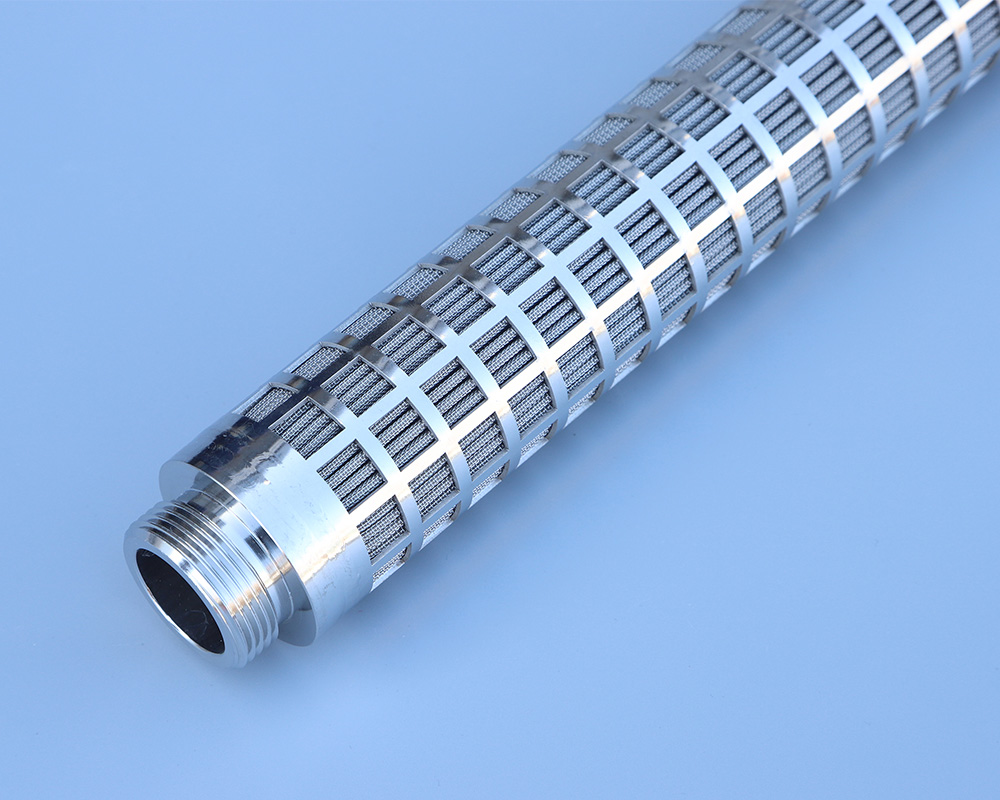

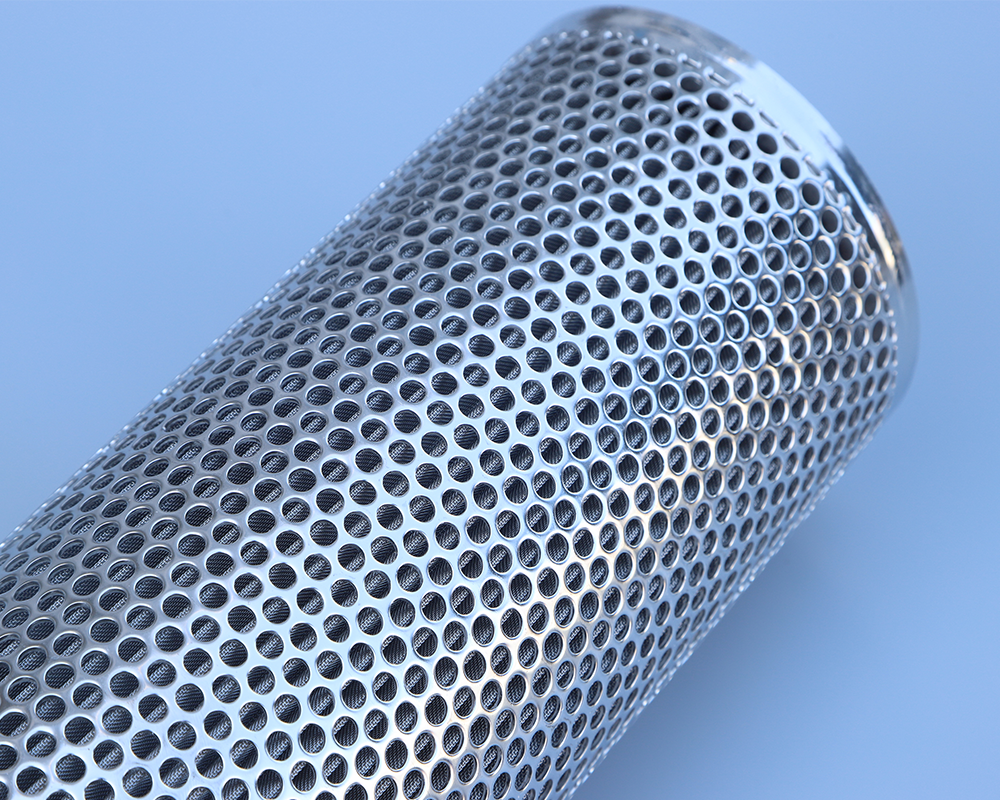

Perforated metal: Enhanced mechanical strength, suitable for high pressure environments.
Pleated pore structure: provides a larger filter surface area
Technical details
Filtration rate: 1-300μm
Diameter :14-800mm
Length :35-1500mm
* Other diameters and lengths are available upon request
disposition
To adapt to different application conditions and installation requirements, AHT offers a variety of adapter options. Estandard connector (215, 222,226)
Thread connector (M20.M30.M32.M42.etc.) Flat/DOE type.
The above are the common specifications of the general pleated wire mesh filter, and the specific specifications will be customized according to the needs of customers to meet the specific filtration requirements and process conditions.
Customization capabilities and services
We not only produce standard models of corrugated metal filters, but also design and manufacture filters of specific thickness, permeability and pore size according to customer requirements. Whether it is high volume production or small customization, our team of engineers can provide personalized support and solutions.
Custom design: Design the filter element with thickness, permeability and aperture according to the specific needs of the user.
Fast delivery: Keep stock of standard models to ensure customer demand is met in a short time.
Professional Consultation: The AHT team draws on their experience and expertise to provide objective advice and customized solutions.
One-to-one support: Even for small batch orders, the engineering team will provide one-to-one customized service.
If you have any purchasing requirements or technical questions, please feel free to contact us. Please provide the following information so that we can provide you with the best solution
Quality assurance
Certified raw material procurement
There are professional inspectors for each production process
Advanced production equipment
All AHT pleated metal filters are subject to rigorous quality testing before leaving the factory。
Professional technology
AHT's expertise in the wave breaking process ensures the mechanical stability and reliability of the product. Whether it is liquid filtration or gas filtration, we are always committed to providing you with a trusted and lasting solution.
Packaging and transportation
All filters are packaged in wooden cases at the factory to prevent damage or scratches during transportation and ensure safe delivery of the product.
Advantage and guarantee
Choose the AHT pleated metal filter and you will get:
Reliable quality assurance: All products undergo strict quality control and testing to ensure that every filter delivered from the factory meets the highest standards.
Efficient customer service: Our professional team is ready to provide you with technical support and after-sales service to ensure that your use experience is worry-free.
Economical solutions: Through optimized design and efficient production, our filters not only deliver superior performance, but also help you reduce your total cost.
Application
Application
1)High polymer industry
2)Petrochemical industry
3)Pharmaceutical and food refining industry
4)Water treatment
5)Machinery and vessel industries
6)Air purification
7)others: High temperature, high viscosity, high pressure
