Reverse Dutch Weave Wire Mesh

Short Description:

Reverse Weave Wire Mesh has a unique pattern that allows for excellent air and light flow. This makes it ideal for use in applications where ventilation or light transmission is important.
Reverse Weave Wire Mesh is flexible and easy to install. It can be manipulated to fit any shape or size, making it ideal for a wide range of applications.
Reverse Weave Wire Mesh is versatile and has an attractive aesthetic appeal. It can be used for a wide range of applications, from architectural to decorative purposes. Its unique pattern adds a visually interesting element to any space.


Product Detail

Product Tags

Introduction

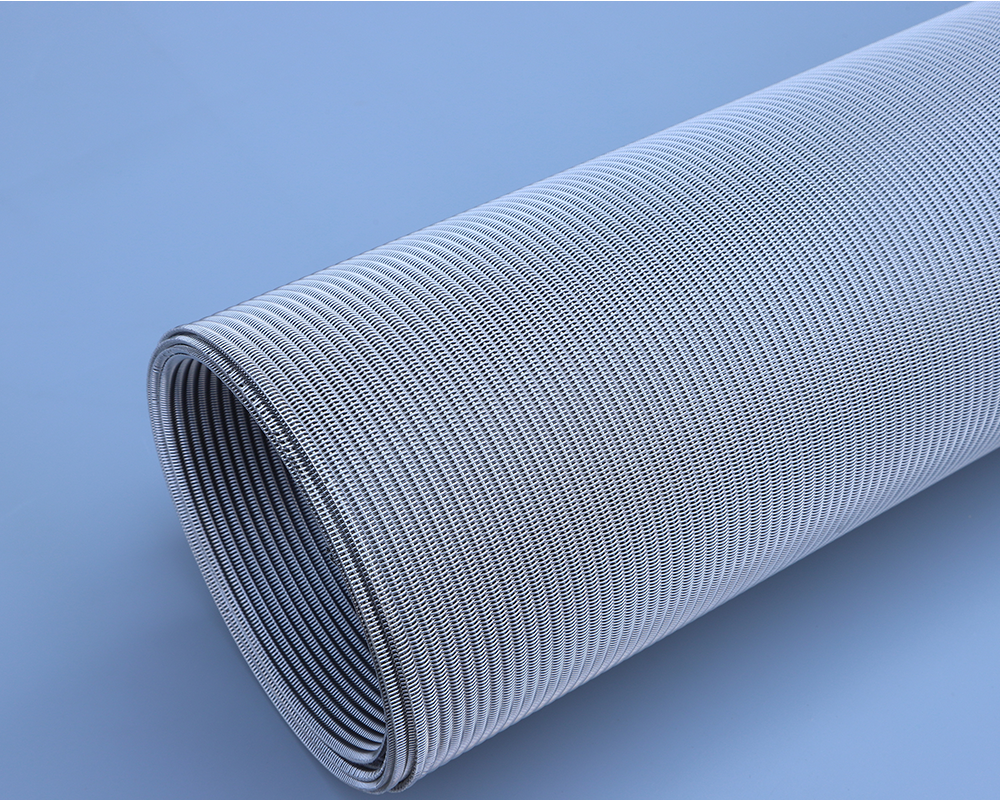

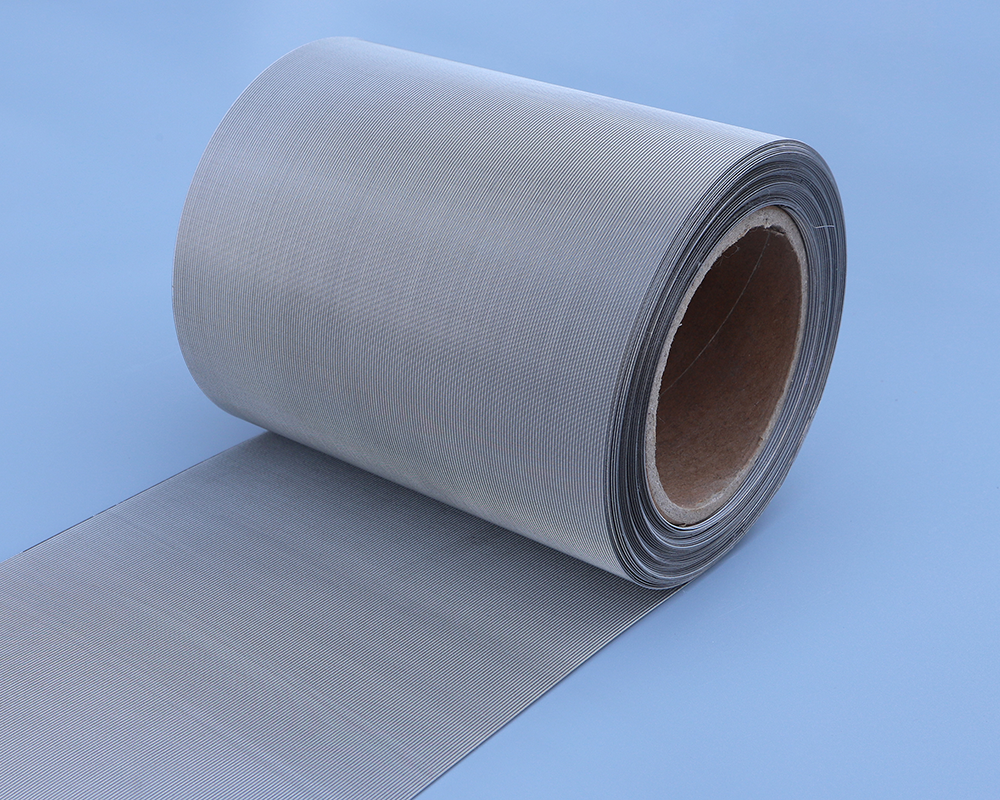

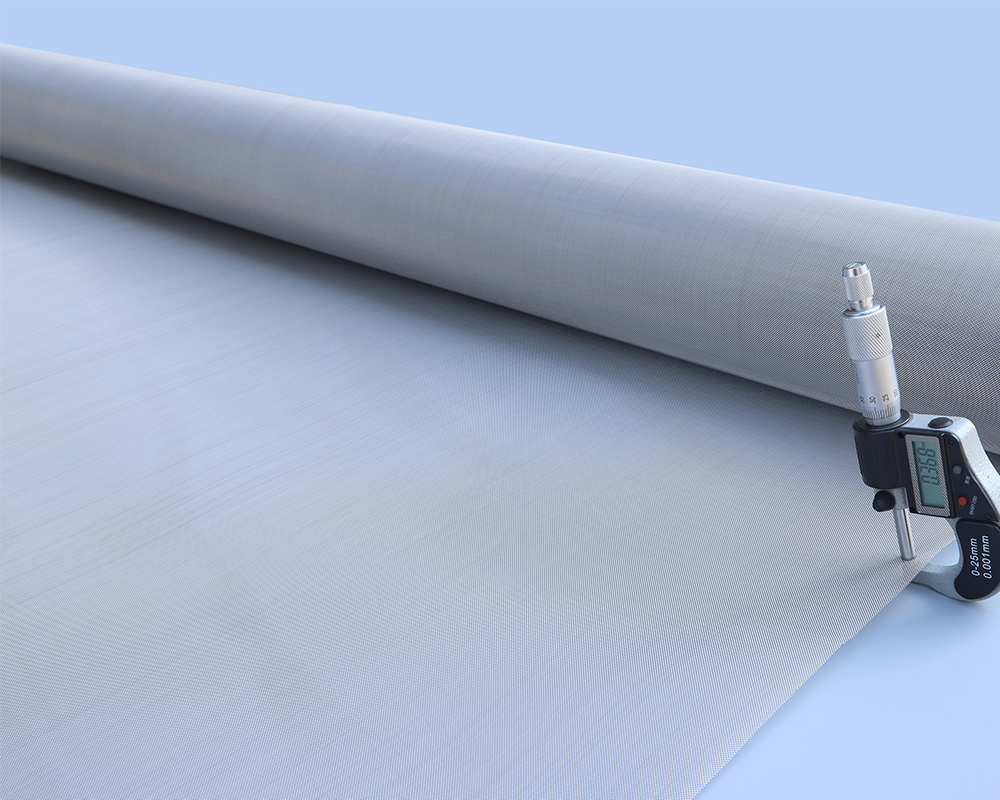

Reverse weave wire mesh, also known as reverse dutch weave wire mesh, is a type of wire mesh with a tighter weave on the warp wires and a larger weave on the weft wires. This unique weave creates a filter cloth with high strength and filtration capabilities.

Reverse Dutch Weave wire mesh is produced by the use of coarse mesh (mesh wire, woven wire mesh) in the warp and a fine mesh with relatively smaller wire in the fill. This weave results in greater strength with very fine openings and is primarily used as a filter cloth. The shape and position of the openings aid particle retention and increase filter cake formation.

The reverse dutch weave wire mesh is made of high-quality stainless steel wire. The warp wires are thicker than the weft wires, which allows for the creation of a tighter and more durable weave. The larger openings on the weft side of the mesh allow for greater flow rates, making it ideal for use in filtration applications.

Display

Reverse-Dutch-Wire-Mesh 5
Dutch-plain-weave-mesh 5
Dutch-twill-woven-mesh 5

Reverse Dutch Wire Mesh

Dutch Plain Weave Wire Mesh

Dutch Twill Weave Wire Mesh

Plain-Weave-Wire-Mesh 5
Twill-Weave-Wire-Mesh 5
5-Heddle-Weave 5

Plain Weave Wire Mesh

Twill Weave Wire Mesh

Five-Heddle Weave Mesh

Specification

- Material: Stainless steel wire (AISI304, AISI304L, AISI316, AISI316L)
- Mesh count: 36x10 mesh to 720x150 mesh
- Wire diameter: 0.17mm to 0.025mm
- Width: 1m, 1.22m, 1.5m, 2m, 2.5m, 3m
- Length: 30m, 60m, 100m

Characteristic

Precise structure, uniform mesh, good filtration accuracy, wear resistance, high temperature resistance, strong acid resistance, corrosion resistance

Application

Reverse dutch weave wire mesh is widely used in many industries due to its excellent filtration and strength properties.
Filtration: Reverse dutch weave wire mesh is commonly used in chemical and pharmaceutical industries for filtering liquids and gases. This includes food and beverage filtering, oil and gas filtering, and water treatment filtering.
Separation: Reverse dutch weave wire mesh can be used for separating solid materials in industries such as mining and quarrying.

Safety: Reverse dutch weave wire mesh can be used for safety purposes such as fencing, window screens, and security doors.

Chemical Filtration
Beverage Filtration
Natural Gas
Petroleum 10
Water Filtration 10
Quarrying

Chemical Filtration

Beverage Filtration

Natural Gas

Petroleum

Water Filtration

Quarrying
