Plain Weave Wire Mesh
Introduction

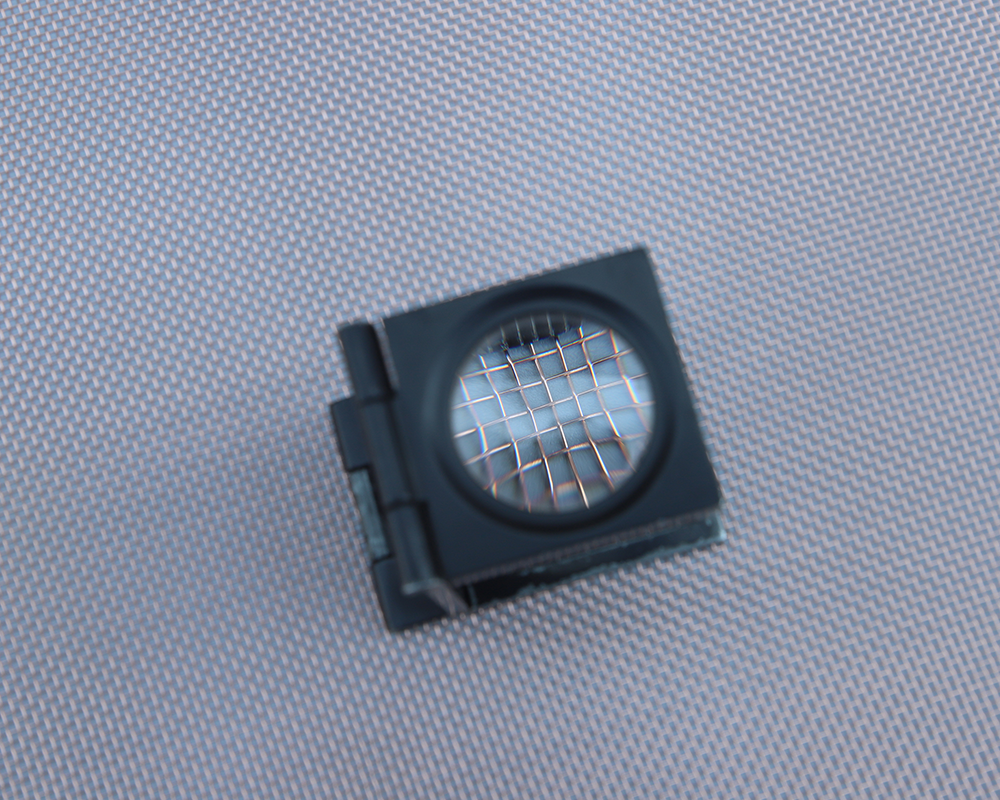

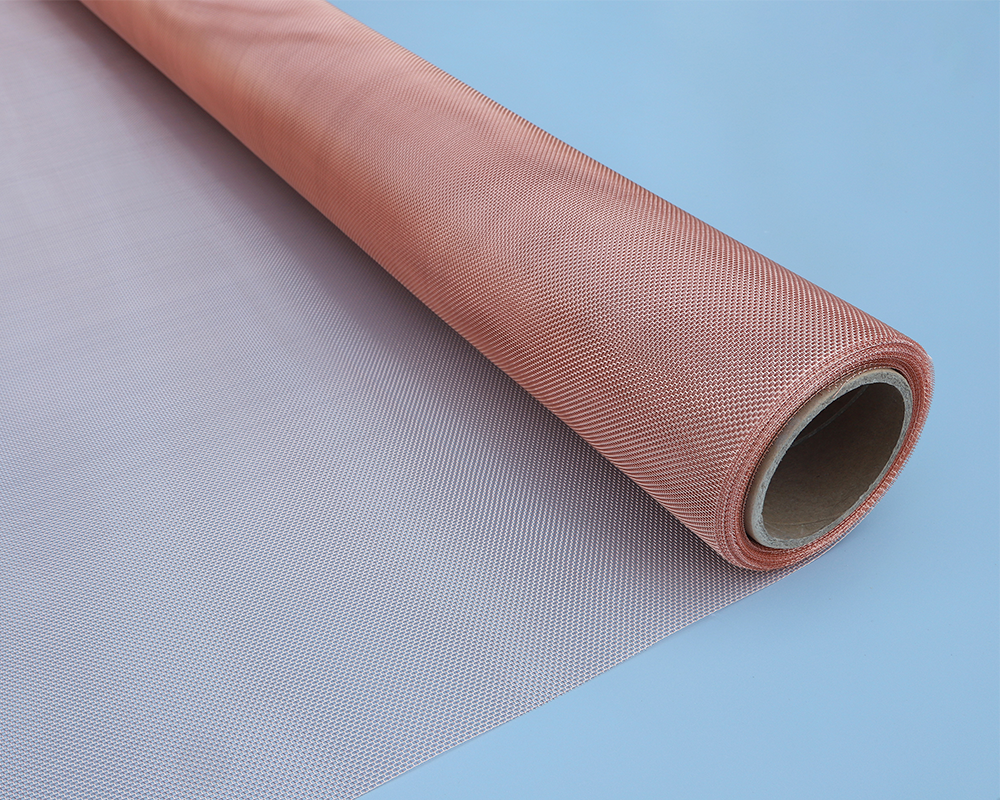

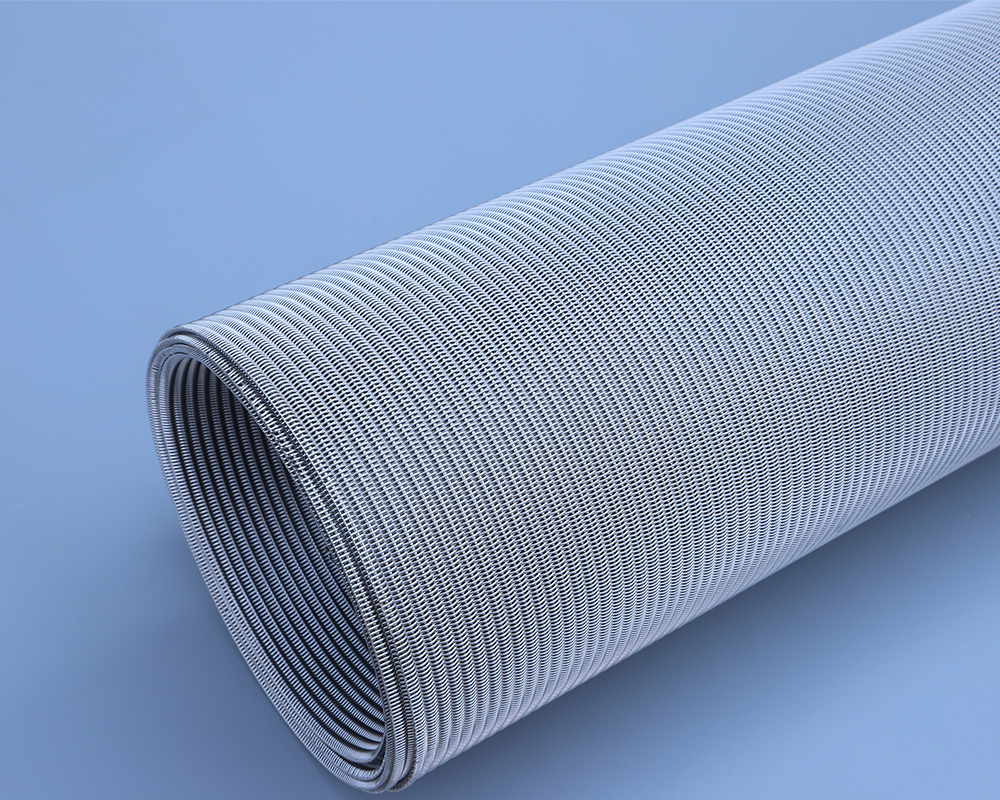

Plain weave wire mesh is the most commonly used and simplest type, Each warp wire (wire running parallel to length of cloth) passes alternately over and under the wires running traverse through the cloth (weft wire or shoot wires) at 90 degree angles. It has an extremely wide range of applications.
Display
Plain Weave Wire Mesh
Twill Weave Wire Mesh
5-Heddle Weave Mesh
Dutch plain weave mesh
Dutch twill woven mesh
Reverse Dutch Wire Mesh
Specification
Plain weave wire mesh can vary depending on the specific application and industry. However, here are some general common sizes that are widely used:
Wire Diameter: The wire diameter typically ranges from 0.5mm (0.0197 inches) to 3.15mm (0.124 inches), although variations outside this range are also available.
Mesh Opening Size: The mesh opening size refers to the spacing between adjacent wires and determines the fineness or coarseness of the mesh. Common mesh opening sizes include:
Coarse Mesh: Usually ranges from 1mm (0.0394 inches) to 20mm (0.7874 inches) or more.
Medium Mesh: Usually ranges from 0.5mm (0.0197 inches) to 1mm (0.0394 inches).
Fine Mesh: Usually ranges from 0.2mm (0.0079 inches) to 0.5mm (0.0197 inches).
Ultra-fine Mesh: Usually smaller than 0.2mm (0.0079 inches).
Width and Length: Plain weave wire mesh is commonly available in standard widths of 36 inches, 48 inches, or 72 inches. The length can vary, usually in rolls of 50 feet or 100 feet, but custom lengths can also be obtained.
It is important to note that these sizes are just general ranges, and the specific requirements may vary depending on the intended use and industry standards. It is recommended to consult with a supplier or manufacturer to determine the most suitable size for your specific application.
|
Mesh/Inch |
Wire Dia (MM) |
|
2Mesh |
1.80mm |
|
3Mesh |
1.60mm |
|
4Mesh |
1.20mm |
|
5Mesh |
0.91mm |
|
6Mesh |
0.80mm |
|
8Mesh |
0.60mm |
|
10Mesh |
0.55mm |
|
12Mesh |
0.50mm |
|
14Mesh |
0.45mm |
|
16Mesh |
0.40mm |
|
18Mesh |
0.35mm |
|
20Mesh |
0.30mm |
|
26Mesh |
0.27mm |
|
30Mesh |
0.25mm |
|
40Mesh |
0.21mm |
|
50Mesh |
0.19mm |
|
60Mesh |
0.15mm |
|
70Mesh |
0.14mm |
|
80Mesh |
0.12mm |
|
90Mesh |
0.11mm |
|
100Mesh |
0.10mm |
|
120Mesh |
0.08mm |
|
140Mesh |
0.07mm |
|
150Mesh |
0.061mm |
|
160Mesh |
0.061mm |
|
180Mesh |
0.051mm |
|
200Mesh |
0.051mm |
|
250Mesh |
0.041mm |
|
300Mesh |
0.031mm |
|
325Mesh |
0.031mm |
|
350Mesh |
0.030mm |
|
400Mesh |
0.025mm |
Characteristic
Precise structure, uniform mesh, good filtration accuracy, wear resistance, high temperature resistance, strong acid resistance, corrosion resistance
Application
Plain weave wire mesh can be used in many applications such as a vibration & shock absorber, gas & liquid filtration, noise dampening, seal & gasket applications, heat insulation, EMI/RFI shielding, mist elimination & technology separation and engine catalyst etc. It is widely used in various industries such as automobile, electronics, aviation, military, industrial, commercial consumer goods, telecommunication, medical, test equipment and accessories, etc.
