Pleated filter element

Short Description:

The Pleated Filter is designed to capture even the finest particles of contaminants in the oil, including dirt, rust, and other sediments, ensuring high purity output.
The pleated design of the filter allows for simple, easy installation, minimizing the time and effort required to replace the filter.
The Pleated Filter is compatible with various types of oils, including hydraulic, lubricating, transformer, and turbine oils, making it a versatile option for a range of applications.

Send email to us

Product Detail

Product Tags

Introduction

Pleated filters are composed of pleated media sheets, making them more effective than other filters in terms of capturing particulate matter and improving air or liquids quality. They are used in a variety of applications, such as HVAC systems, aquariums, and water systems, which benefit from the increased surface area and stronger filtering power of pleated filters. Pleated filters may also be designed with a specific particle size in mind and come in a wide range of shapes and sizes, allowing them to be used in efficiently and effectively in a variety of settings.

Display

Specification

The main filter media of Pleated Filter is made by stainless steel woven wire mesh and stainless steel fiber sintered felt.
The materials of main filter media are include 304、304L、316、316L、904L、Monel、Hastelloy etc.

● Filtration rate: 3-200μm
● Temperature: -50℃-800℃
● Diameter: 14-180mm, Length: 35-1500mm
● Customized also is available.

Absolute Filter Rating (μ)	Bubble Piont Pressure (Pa)	Average Air Permeability (l/dm2/min)	Thichness (mm)	Weight (g/m2)	Porosity (%)	Dirt Holding Capacity (mg/cm2)
3	12300	9	0.35	975	65	6.40
5	7600	34	0.34	600	78	5.47
7	5045	57	0.27	600	72	6.47
10	3700	100	0.32	600	77	7.56
15	2470	175	0.37	600	80	7.92
20	1850	255	0.49	750	81	12.44
25	1480	320	0.61	1050	79	19.38
30	1235	455	0.63	1050	79	23.07
40	925	580	0.66	1200	77	25.96
60	630	1000	0.70	750	87	33.97

Characteristic

1. Large filtration area, Wide range of filtering accuracy
2. High porosity rate, Excellent air permeability and filtration ability.
3. Good dirt holding capacity, Economical.
4. High temperature resistance, corrosion resistance etc.
5. Easy cleaning, Recyclable.

Application

1) High polymer industry

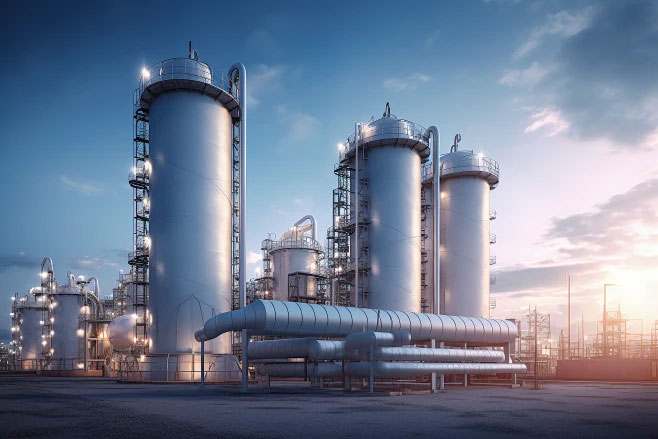

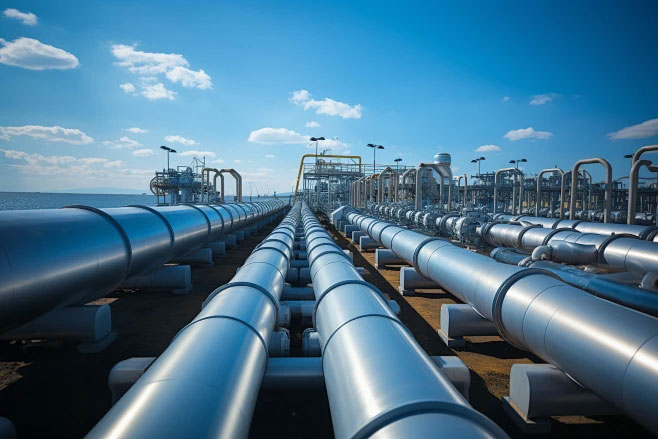

2) Petrochemical industry

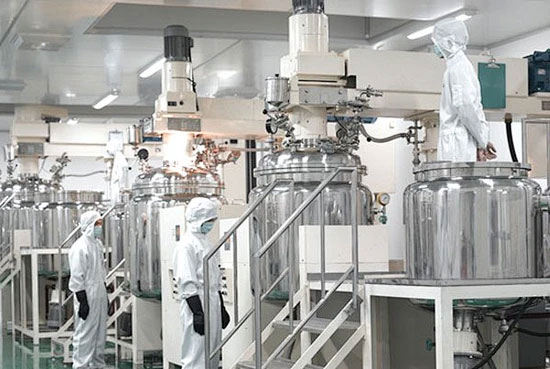

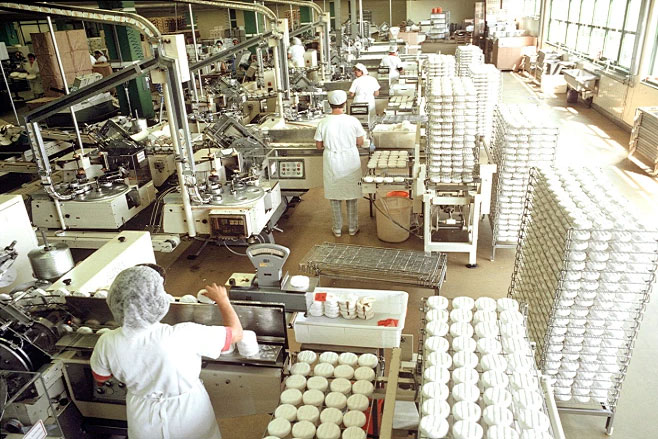

3) Pharmaceutical and food refining industry

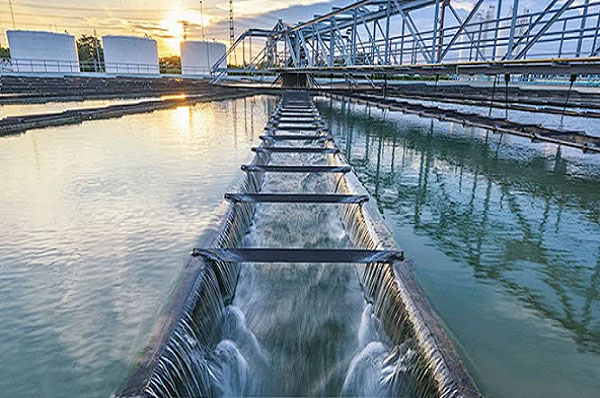

4) Water treatment
5) Machinery and vessel industries
6) Air purification
7) Others: High temperature, high viscosity, high pressure.
