Leaf Disc Filter
Leaf Disc Filter Introduction
The main filter material of the leaf disc filter is metal fiber sintered felt, multi-layer sintered mesh and metal sintered mesh. Its production process is by sintering non-woven fiber processing into metal felt media, is the ideal choice for high polymer filtration applications. In a wide range of sizes and hub configurations, the unique design of the leaf disc filter provides efficient filtration capabilities, often used to remove particulate matter and other impurities from liquids and gases. A series of circular discs maximizes its filtration area and reduces the retention time of the polymer, ultimately reducing the overall risk of polymer degradation. As a leaf disc filters manufacturer, AHT/Hartong strictly controls all aspects to achieve a more stable filtration flow rate and increase its service life. It is often used for filtration of extruded polymers, solid-liquid or air filtration. Please feel free to contact us if you are interested in further discussing technical details or collaboration opportunities for leaf disc filters.

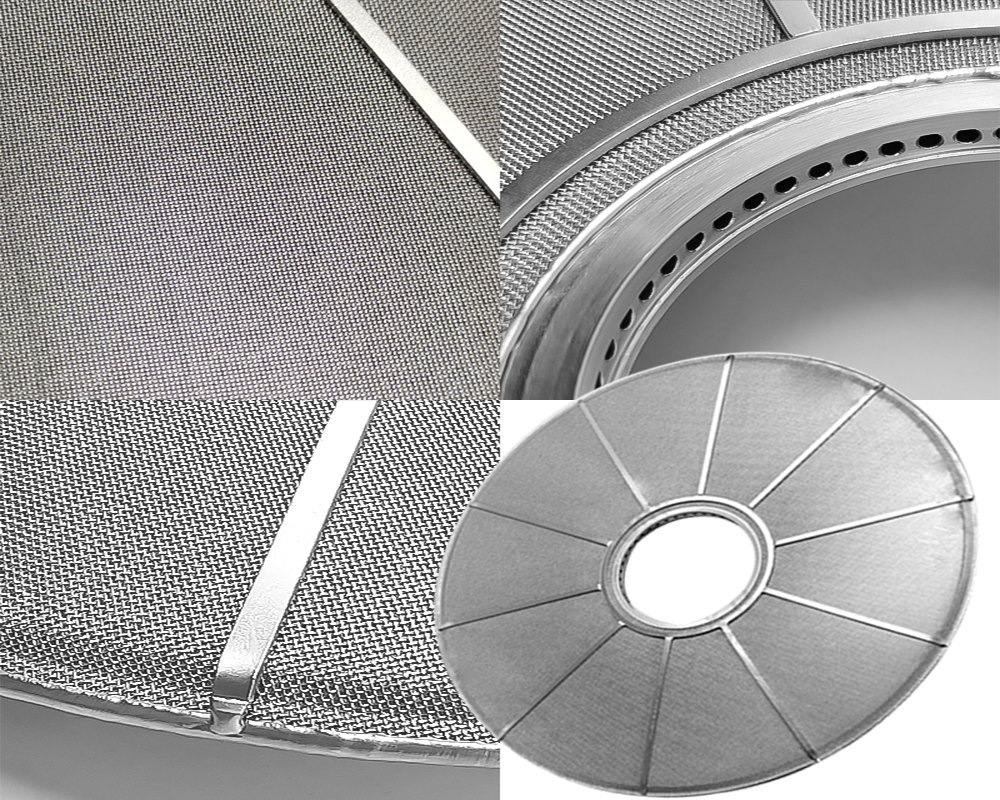

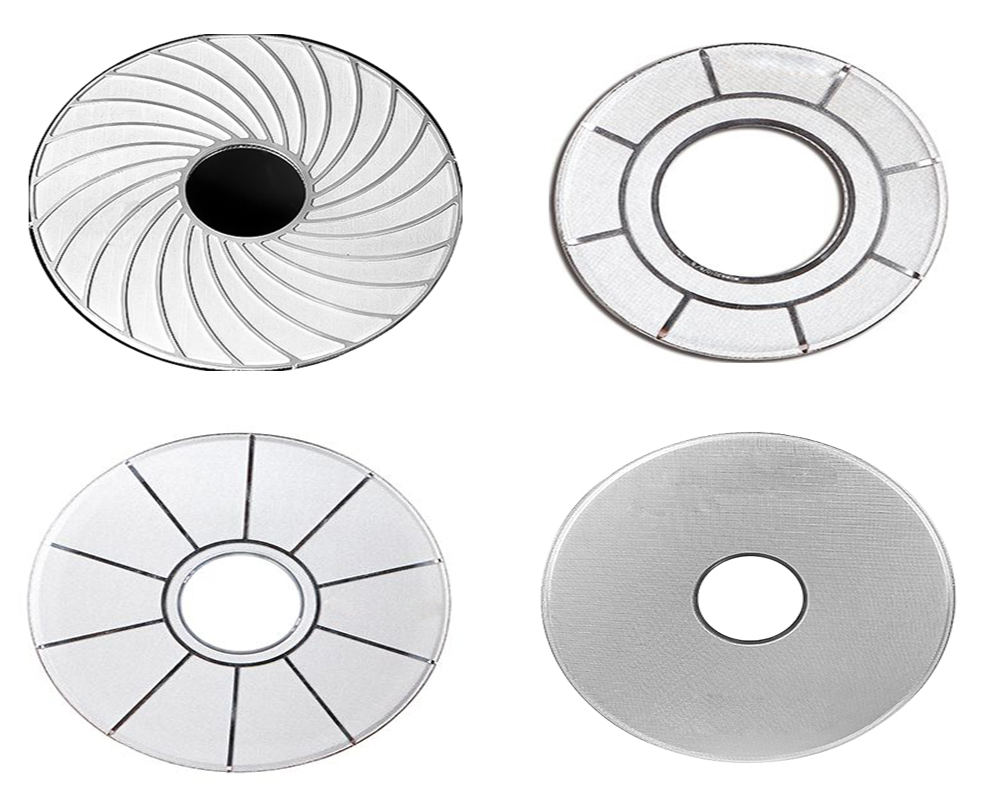

Leaf Disc Filter Display
Leaf Disc Filter Specification
* Filtration rate: 3-200μm
* Diameter: 10-3000mm
*The main media materials: metal fiber sintered felt, multi-layer sintered wire cloth, metal sintered woven wire mesh
Fiber metal felt depth media are available from 3μm- 60μm absolute
Sintered wire cloth media is available from 10μm- 200μm absolute
Filtration direction: inside to outside
Sizes & Center Hub Designs
Standard diameters are 7″, 10″ and 12″
Standard hub designs are hard, soft, and semi-hard.
*Material: AISI316, AISI316L, Titanium and other alloys.
These are regular leaf disc filters specifications and can be customized to meet your specific filtration needs.
| Leaf Disc Filter | |||||
| Model |
Size (mm) |
|
|||
|
A |
B |
C |
D |
||
|
AHT-5-5-11 |
50 |
57 |
111 |
3 |
|
|
AHT-5-5-14 |
50 |
57 |
149 |
3 |
|
|
AHT-6-6-17 |
60 |
67 |
177 |
3 |
|
|
AHT-7-8-17 |
77 |
84 |
177 |
3 |
|
|
AHT-6-6-22 |
60 |
67 |
222 |
3 |
|
|
AHT-7-8-22 |
77 |
84 |
222 |
3 |
|
|
AHT-7-8-30 |
77 |
84 |
304 |
3 |
|
Leaf Disc Filter Characteristics
Excellent filtration performance: high porosity and good permeability reduce the pressure drop, effectively improve its filtration capacity, thin disk design, increase the filtration area, can efficiently remove fine particles, and ensure good permeability;
High strength: The solid structure of the leaf disc filter ensures that it has a stable impact resistance to the harsh environment, can withstand large pressure and extrusion pressure, and is not easy to deformation and rupture;
Easy to clean and recyclable: stainless steel filter element has good cleaning performance, can be cleaned and reused through repeated rust, reduce the use cost and maintenance costs, can extend the service life;
Filter material selection is diverse: leaf disc filter can use different filter materials, filter accuracy range is wide, widely used;
Filter direction: from inside to outside.
Leaf Disc Filter Production capacity
AHT/Hartong Wire Mesh Co., Ltd. is a set of design, research and development, production as one of the metal filter manufacturer, covers an area of about 40,000 square meters, the annual output value of up to 2l$ million, has been engaged in the field of metal filtration for more than 20 years, has a complete production line and dozens of professional metal filter engineers, support different specifications of leaf disc filters customization, We will provide you with OEM services on a long-term basis to meet your specific filtration needs.
You can provide your application requirements and system parameters, and our professional engineers will give you a perfect solution.
Leaf Disc Filter Certificate
AHT/Hartong Wire Mesh Co., Ltd. has a strict quality control system and has owned and fully implemented the following relevant certification systems:
ISO9001 Quality Management System Certification
ISO45001 Occupational Health And Safety Management System Certification
ISO14001 Environmental Management System Certification
ATF16949 Automotive Industry Quality Management System Certification
AEO Customs Certification
Leaf Disc Filter Packaging
Plastic film & Plywood case
Leaf Disc Filter Applications
Leaf Disc Filters are a reliable and effective solution for the filtration of liquids and gases. Our high-quality filters are available in a range of materials, sizes, and micron ratings, and are designed to operate at high flow rates and pressures. Whether you are filtering water or chemicals, our Leaf Disc Filters are the ideal solution for all your filtration needs.
Our Leaf Disc Filters are used in a wide range of applications including the filtration of:
Water purification
Oil filtration
Air filtration
Petroleum Products
Food and Beverage
Polymer Filtration
Film Production
purification of Petroleum and Chemistry
