Knitted Mesh

Short Description:

Knitted mesh, also known as Gas-Liquid filter mesh, is made in either a crochet or knitted option of various wire materials including stainless steel, copper, synthetic fiber and other materials.
Our mesh can also be supplied in a crimped style at the customer’s request.
Crimped type:twill, herringbone.
Crimped depth: commonly is 3cm-5cm, special size is also available.


Product Detail

Product Tags

Introduction

It is also known as Gas-Liquid Filter Demister, Shielding Metal Mesh.

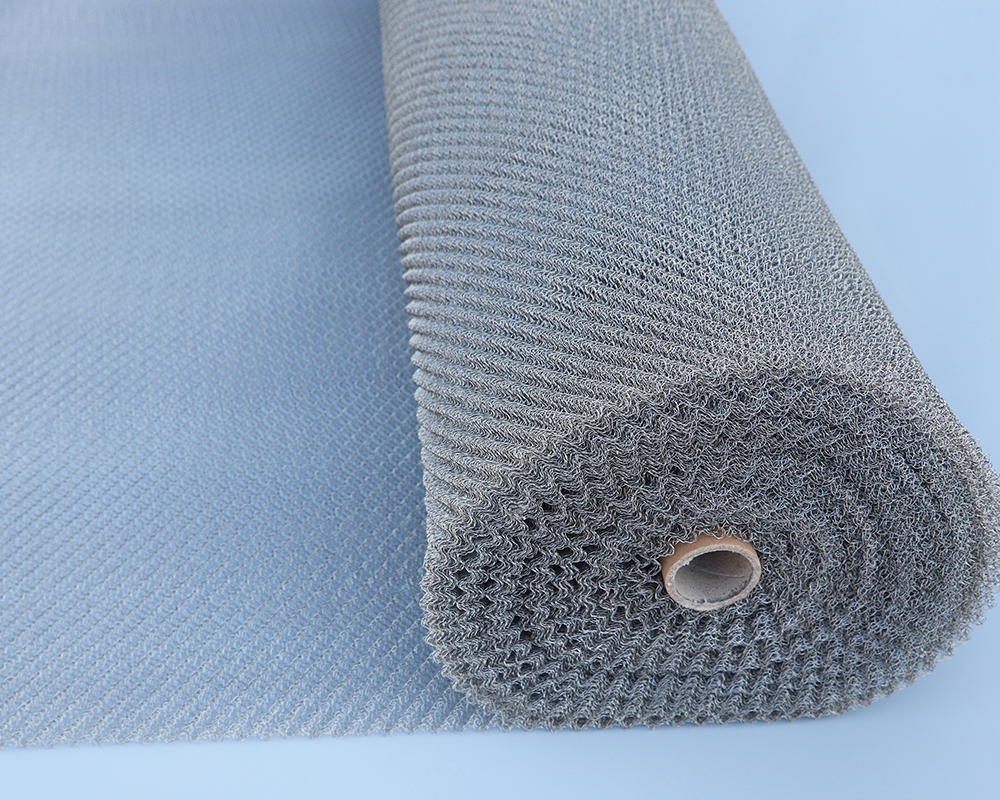

Knitted Wire Mesh is available in various diameters of wire that are knited into a tubular form, then flattened into continuous lengths and rolled up for packaging.

Display

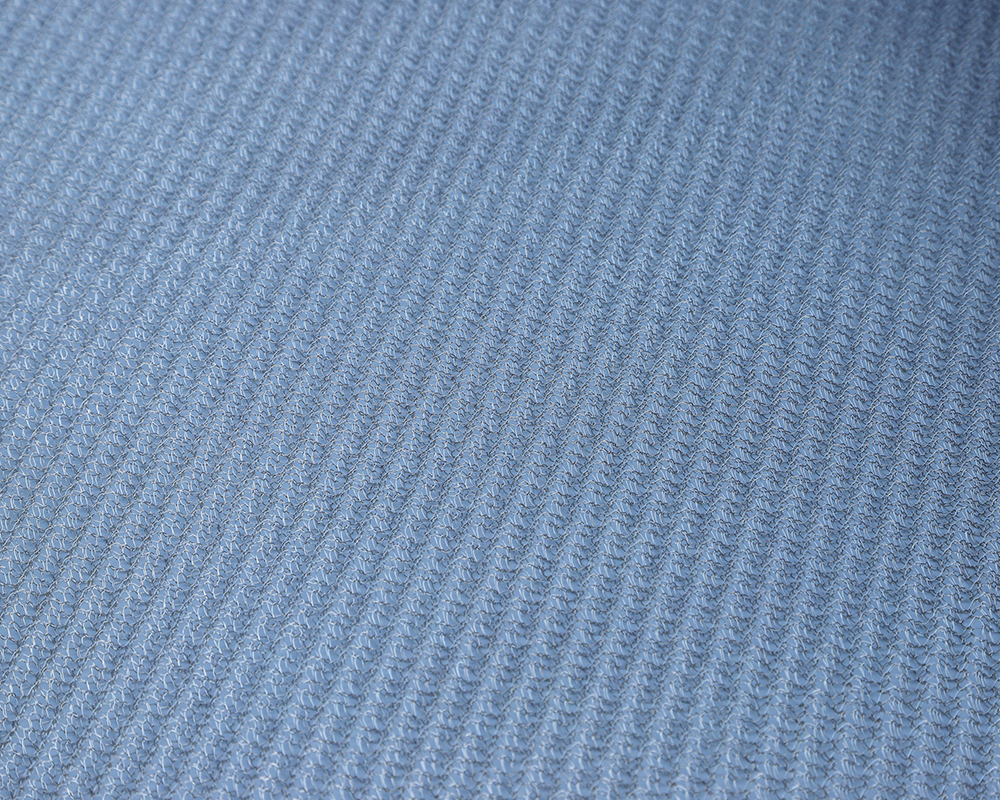

Stainless Steel Knitted Wire Mesh

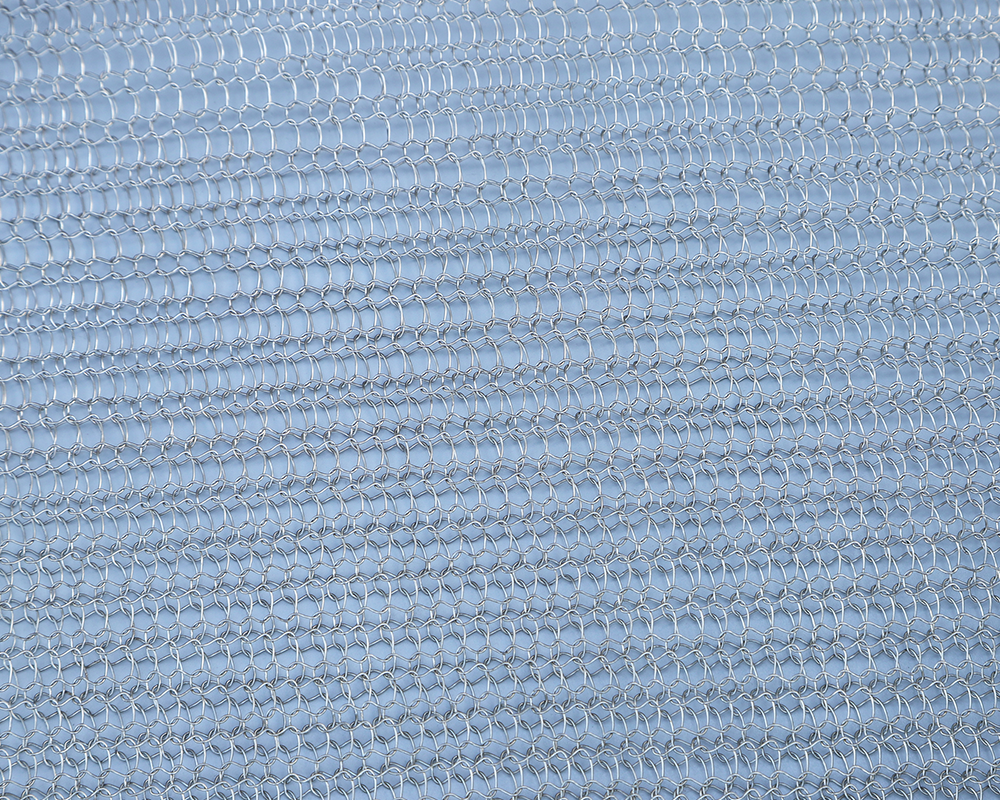

knitted stainless steel mesh
Copper Knitted Wire Mesh
knitted metal mesh

Specification

Material: stainless steel, titanium, Monel, phosphorus copper, nickel and other alloys

Wire diameter: 0.10mm-0.55mm (commonly used:0.2-0.25mm)

Knitting width: 10-1100mm

Knitting density: 40-1000 stitches/10cm

Thickness: 1-5mm

Surface area weight: 50-4000g/m2

Pore size: 0.2mm-10mm

Characteristic

Guangtong Knitted Mesh machine is designed and self-developed by the R&D department. it is knitted witout oil, which also have a good advantage of uniform holes and flat surface.

Application

Knitted wire mesh is widely used in a range of industrial, commercial, and household applications. Some of the typical uses of knitted wire mesh include:

- Filtration: Knitted wire mesh is commonly used as a filtering medium in various industries, including petrochemical, pharmaceutical, and food processing, to remove impurities from liquids and gases.

- Sealing: Knitted wire mesh is highly compressible and flexible, making it an ideal material for sealing applications in automotive, aerospace, and other industries, where it is used to prevent the leakage of fluids and gases.

- Catalysis: Knitted wire mesh is also used as a catalytic converter substrate in automotive exhaust systems, where it helps to reduce harmful emissions and improve fuel efficiency.

- EMI shielding: Knitted wire mesh is an excellent electromagnetic interference (EMI) and radio frequency interference (RFI) shielding material, making it ideal for use in electronic devices, shielding rooms, and other applications where electromagnetic interference needs to be minimized.

It is also widely used in vibration & shock absorption, air & liquid filtration, noise suppression, gasketing & sealing ,heat transfer & insulatio. Suitable for industries, medicine, metallurgy, machinery, shipbuilding, automobile, tractor industries such as distillation, evaporation, to remove entrained in the steam or gas and liquid droplets in the foam, and used as automobile and tractor air filter.
Knitted wire mesh are applied to those applications including cryogenic, high temperature, corrosive atmosphere, heat conductive, high usage, or special service applications.

Chemical Industry
Gas Filtration
Petroleum
Water Filtration
Pharmaceutical Manufacturing
Food Processing

Chemical Industry

Gas Filtration

Petroleum

Water Filtration

Pharmaceutical Manufacturing

Food Processing
