Five-Heddle Weave Wire Mesh
Introduction
Five-Heddle Woven Wire Mesh is a type of mesh product made of steel wire. It is a highly versatile product that can be woven in a variety of ways to produce different mesh structures and mesh sizes.
The mesh is woven using five heddles and a flat steel wire. The mesh size and strength depends on the wire diameter and the type of weaving technique used. The mesh can be woven with an open-type weave, a closed-type weave, and a combination of both.
Display

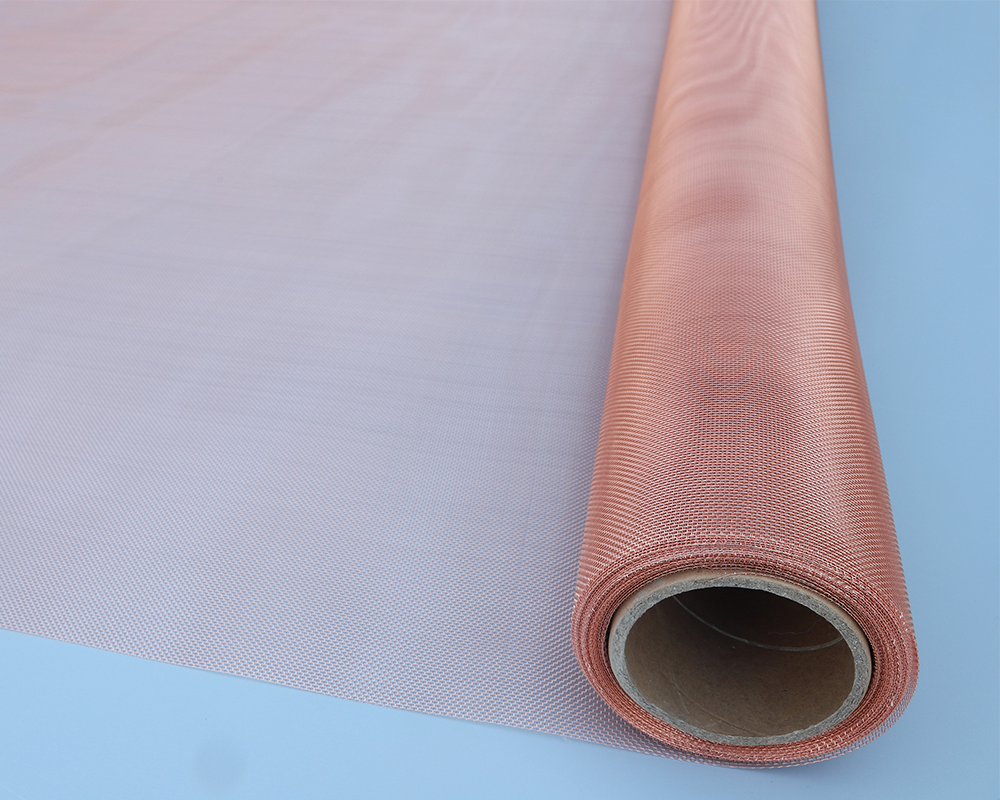

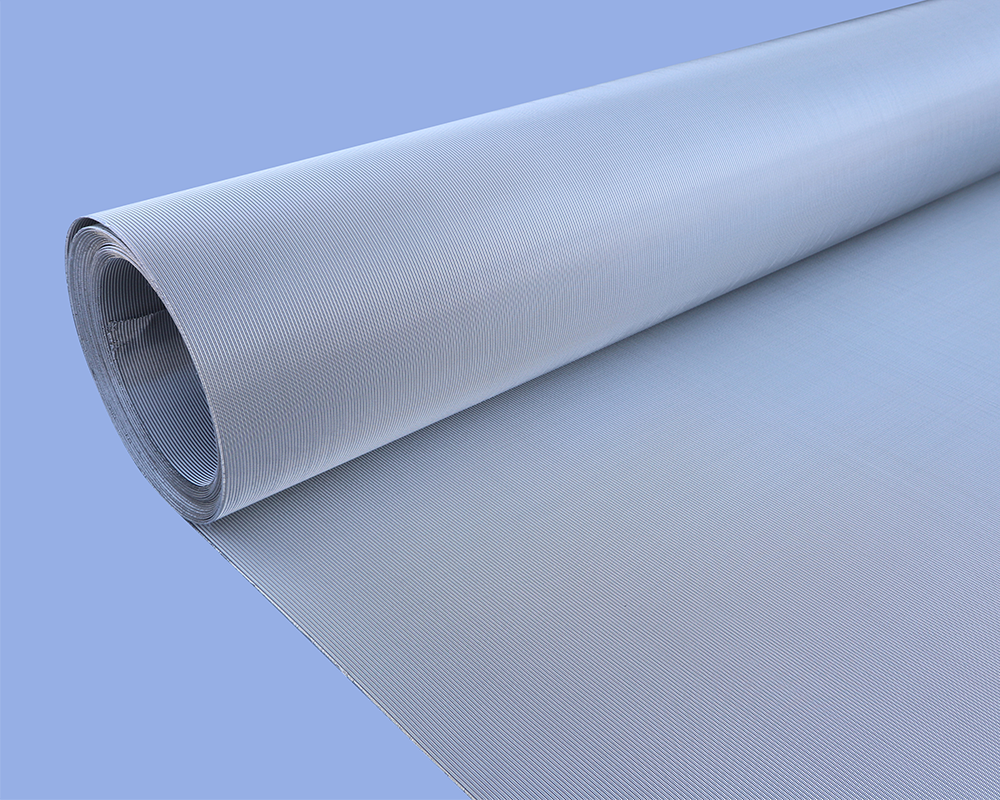

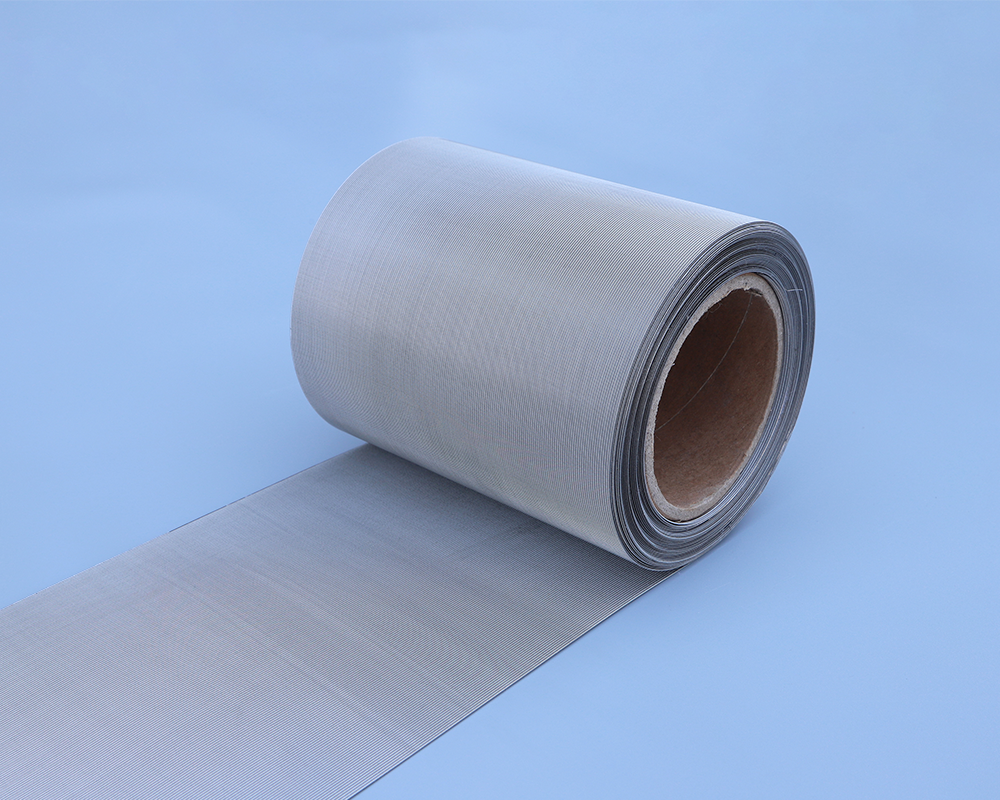

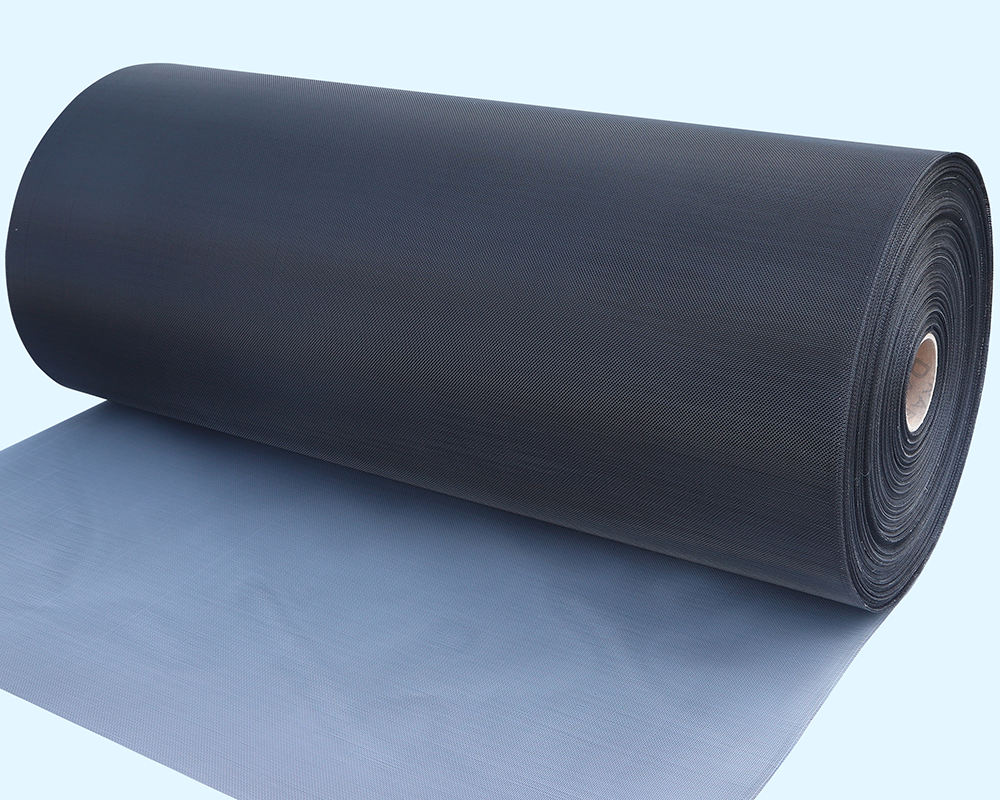

Five-Heddle Weave Mesh
Plain Weave Wire Mesh
Twill Weave Wire Mesh
Dutch Plain Weave Wire Mesh
Dutch Twill Weave Wire Mesh
Reverse Dutch Wire Mesh
Specification
Material: The main material is SS 304, SS 304L, SS 316, SS 316L, we can also produce the special material SS 314, SS 904L, alloy 400 etc.
|
Spec. Of Stainless Steel Five Heddle Mesh |
|||||
|
Mesh |
Wire |
Micron Retention |
Weight |
||
|
Warp |
Weft |
Warp(mm) |
Weft(mm) |
nom.(μm) |
kg/㎡ |
|
132 |
85 |
0.14 |
0.2 |
0.052 |
1.47 |
|
107 |
132 |
0.16 |
0.14 |
0.055 |
1.3 |
|
107 |
125 |
0.16 |
0.14 |
0.07 |
1.27 |
|
107 |
59 |
0.16 |
0.16 |
0.077 |
1.09 |
|
80 |
60 |
0.2 |
0.2 |
0.127 |
1.4 |
|
77 |
40 |
0.24 |
0.24 |
0.095 |
1.65 |
|
65 |
36 |
0.3 |
0.3 |
0.1 |
2.27 |
|
55 |
36 |
0.3 |
0.3 |
0.175 |
2.05 |
|
48 |
45 |
0.4 |
0.4 |
0.13 |
3.79 |
|
48 |
45 |
0.29 |
0.29 |
0.23 |
2 |
|
48 |
25 |
0.3 |
0.3 |
0.25 |
1.64 |
|
30 |
18 |
0.5 |
0.5 |
0.37 |
3 |
|
28 |
17 |
0.47 |
0.47 |
0.46 |
2.53 |
|
24 |
20 |
0.6 |
0.6 |
0.49 |
3.96 |
|
15 |
13 |
0.9 |
0.9 |
0.85 |
5.67 |
|
Spec. Of Stainless Steel Five Heddle Mesh |
|||||
|
Mesh |
Wire Diameter |
Aperture |
|||
|
Warp |
Weft |
Warp(mm) |
Weft(mm) |
Warp(mm) |
Weft(mm) |
|
108 |
59 |
0.16 |
0.16 |
0.075 |
0.271 |
|
110 |
60 |
0.16 |
0.16 |
0.071 |
0.263 |
|
38 |
38 |
0.15 |
0.15 |
0.518 |
0.518 |
Weaving Method
Each warp wire alternately goes under and above each one and four weft wires, and each weft wire goes under and above each one and four warp wires alternately.
Characteristic
● High flow rates
● Improved drainage and flow features
● Suitable for high mechanical loads
● Lightly & smoothly structured mesh surface will easy trouble-free cleaning of the filter media
Application
Five-Heddle Woven Wire Mesh is used in a variety of applications, including industrial, agricultural, and home applications. It is often used in filters, screens, and sieves. It is also used in construction, as it is strong and durable.
● High mechanical loads
● Pressure and vacuum filters
● Candle Filters
Five-Heddle Woven Wire Mesh is used in a variety of applications, including industrial, agricultural, and home applications. It is often used in filters, screens, and sieves. It is also used in construction, as it is strong and durable.
❃ Suitable for
Five-Heddle Woven Wire Mesh is suitable for a wide range of people, from engineers and architects to farmers and homeowners. It is a cost-effective and versatile product that can be used for many different applications.
❃ How to use
Five-Heddle Woven Wire Mesh is easy to install and use. The mesh can be cut to size and shaped to fit any application. It can be used to construct walls, fences, and other structures. It can also be used to make filters, screens, and sieves.
❃ Structure
Five-Heddle Woven Wire Mesh is made of a flat steel wire that is woven together using five heddles. This creates a mesh structure that is both strong and flexible. The size and strength of the mesh depends on the wire diameter and the type of weaving technique used.
❃ Material
Five-Heddle Woven Wire Mesh is made of a flat steel wire. The wire is typically galvanized or stainless steel, to increase its durability and strength. The mesh can also be made of other materials, such as aluminum, brass, or copper.
