Brass Wire Mesh
Introduction

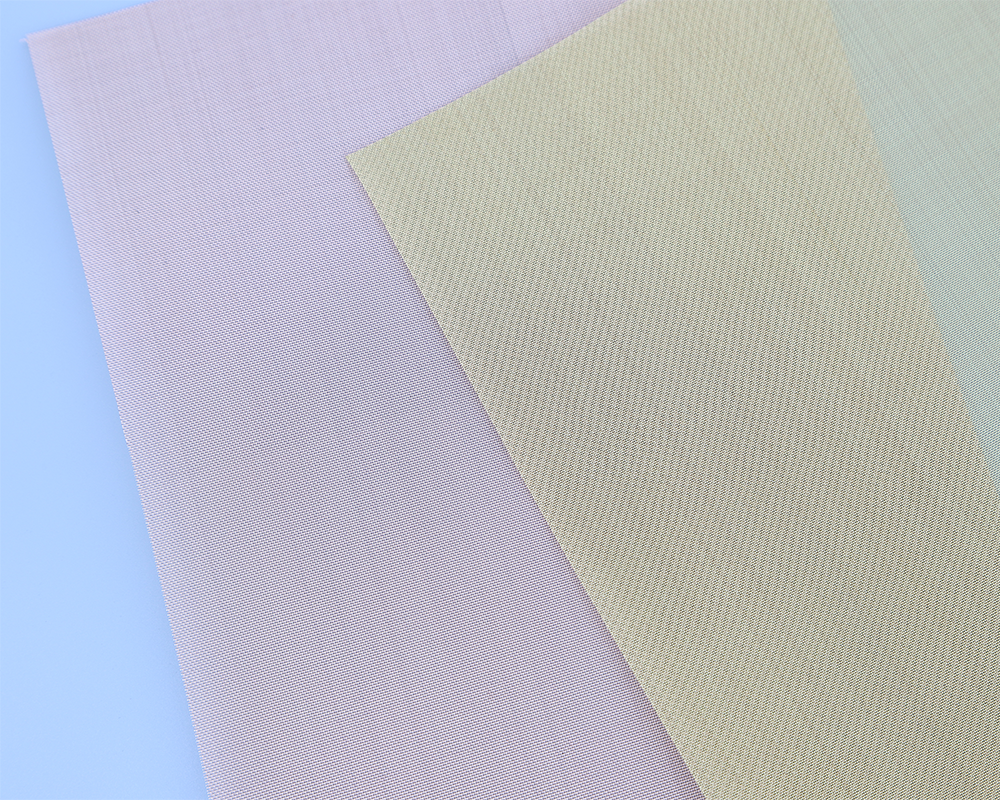

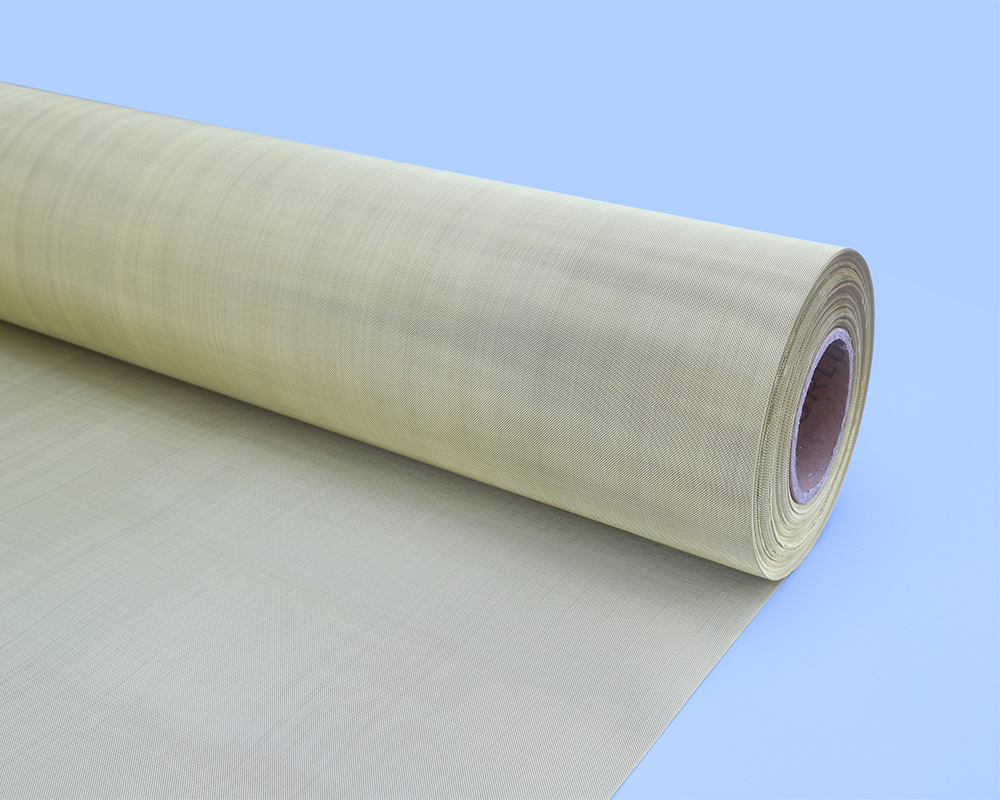

Brass Wire Mesh is woven using a high quality brass wire.
Brass is an alloy of copper and zinc, offers better abrasion resistance, better corrosion resistance and lower electrical conductivity as compared to copper mesh.
AHT Hatong Brass wire mesh and phosphor bronze wire mesh are extensively used for sieving diversified pellet, powder, porcelain clay and glass, chinaware printing, and filtering liquid and gas.
Weaving Method
Plain Weave Wire Mesh
Twill Weave Wire Mesh
Five-Heddle Weave Mesh
Dutch Plain Weave Wire Mesh
Dutch Twill Weave Wire Mesh
Reverse Dutch Wire Mesh
Specification
Brass wire cloth: 1mesh to 200mesh;
Copper wire cloth: 1mesh to 80mesh;
Phosphor bronze wire cloth 1mesh to 400mesh.
|
Mesh |
Wire Dia. |
Opening(mm) |
||
|
SWG |
mm |
inch |
||
|
6 |
22 |
0.711 |
0.028 |
3.522 |
|
8 |
23 |
0.610 |
0.024 |
2.565 |
|
10 |
25 |
0.508 |
0.020 |
2.032 |
|
12 |
26 |
0.457 |
0.018 |
1.660 |
|
14 |
27 |
0.417 |
0.016 |
1.397 |
|
16 |
29 |
0.345 |
0.014 |
1.243 |
|
18 |
30 |
0.315 |
0.012 |
1.096 |
|
20 |
30 |
0.315 |
0.0124 |
0.955 |
|
22 |
30 |
0.315 |
0.0124 |
0.840 |
|
24 |
30 |
0.315 |
0.0124 |
0.743 |
|
26 |
31 |
0.295 |
0.0116 |
0.682 |
|
28 |
31 |
0.295 |
0.0116 |
0.612 |
|
30 |
32 |
0.247 |
0.011 |
0.573 |
|
32 |
33 |
0.254 |
0.010 |
0.540 |
|
34 |
34 |
0.234 |
0.0092 |
0.513 |
|
36 |
34 |
0.234 |
0.0092 |
0.472 |
|
38 |
35 |
0.213 |
0.0084 |
0.455 |
|
40 |
36 |
0.193 |
0.0076 |
0.442 |
|
42 |
36 |
0.193 |
0.0076 |
0.412 |
|
44 |
37 |
0.173 |
0.0068 |
0.404 |
|
46 |
37 |
0.173 |
0.0068 |
0.379 |
|
48 |
37 |
0.173 |
0.0068 |
0.356 |
|
50 |
37 |
0.173 |
0.0068 |
0.335 |
|
60×50 |
36 |
0.193 |
0.0076 |
- |
|
60×50 |
37 |
0.173 |
0.0068 |
- |
|
60 |
37 |
0.173 |
0.0068 |
0.250 |
|
70 |
39 |
0.132 |
0.0052 |
0.231 |
|
80 |
40 |
0.122 |
0.0048 |
0.196 |
|
90 |
41 |
0.112 |
0.0044 |
0.170 |
|
100 |
42 |
0.012 |
0.004 |
0.152 |
|
120×108 |
43 |
0.091 |
0.0036 |
- |
|
120 |
44 |
0.081 |
0.0032 |
0.131 |
|
140 |
46 |
0.061 |
0.0024 |
0.120 |
|
150 |
46 |
0.061 |
0.0024 |
0.108 |
|
160 |
46 |
0.061 |
0.0024 |
0.098 |
|
180 |
47 |
0.051 |
0.002 |
0.090 |
|
200 |
47 |
0.051 |
0.002 |
0.076 |
Characteristic
It is 99.8% purity, featuring acid and alkali resistance, wear resistance, non-magnetic, sound insulation and good ductility.
Application
It can be used as shielding screen in the circuits, laboratories and computer rooms. Shielding effectiveness calculator also illustrates the difference between copper wire meshes at various radio frequencies. In addition, it can be installed on buildings for sound insulation or is fabricated into polymer extruder screen for polymer filtration.
